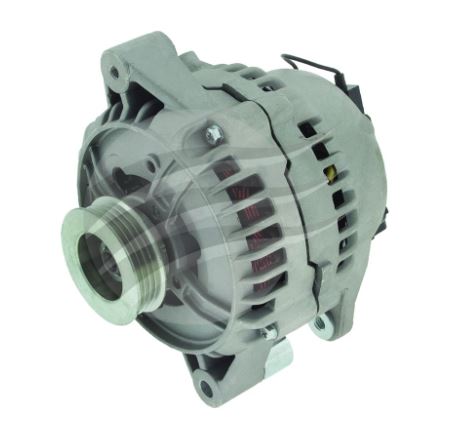

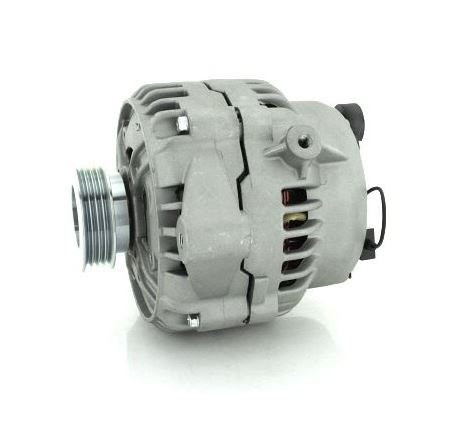

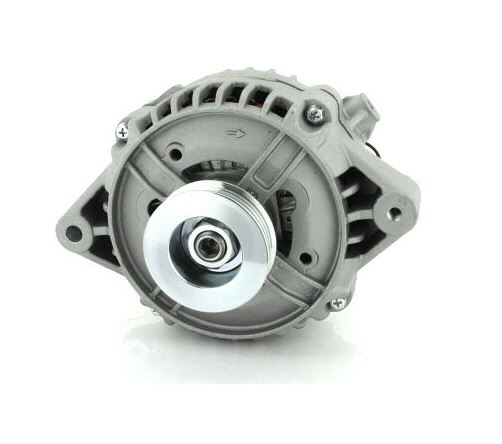

Jaylec Alternator 65-1040 12V 120A Commodore VS VT 5.0L V8

Jaylec 65-1040 Alternator

New 12V, 120A alternator. Part number: 65-1040. Listed equivalents: Bosch BXH1253A and OEX BXA042.

The supplier application records below include repeated notes that a 120A option is offered. Confirm the correct alternator output and fitment for the specific vehicle before ordering.

Holden Calais and Commodore VT V8

• Holden Calais VT-i, 5.0L GMH 304 (Black) OHV 16-valve petrol V8, 179 kW, sedan RWD, 09/97–06/99; 120A option listed, check suitability.
• Holden Calais VT-i, 5.0L GMH 304 (Black) OHV 16-valve petrol V8, 195 kW, sedan RWD, 04/98–06/99; 120A option listed, check suitability.
• Holden Commodore VT-i, 5.0L GMH 304 (Black) OHV 16-valve petrol V8, 179 kW, sedan RWD, 09/97–06/99; 120A option listed, check suitability.
• Holden Commodore VT-i, 5.0L GMH 304 (Black) OHV 16-valve petrol V8, 179 kW, wagon RWD, 09/97–06/99; 120A option listed, check suitability.
• Holden Commodore VT-i, 5.0L GMH 304 (Black) OHV 16-valve petrol V8, 195 kW, sedan RWD, 04/98–06/99; 120A option listed, check suitability.

HSV applications

• HSV Clubsport VT-i, 5.0L GMH 308 OHV 16-valve petrol V8, 195 kW, sedan RWD, 01/97–06/99; 120A option listed, check suitability.
• HSV LS VG-i, 5.0L VU OHV 16-valve petrol V8, 165 kW, utility RWD, 09/91–02/92; Bosch-style 12V 120A unit listed.
• HSV Maloo VG-i, 5.0L VU OHV 16-valve petrol V8, 180 kW, utility RWD, 10/90–02/92; Bosch-style 12V 120A unit listed.
• HSV Manta VT-i, 5.0L VU OHV 16-valve petrol V8, 195 kW, sedan RWD, 09/97–01/99; Bosch-style 12V 120A unit listed.
• HSV Senator VP-i, 5.0L VU OHV 16-valve petrol V8, 200 kW, sedan RWD, 05/92–08/93.
• HSV Senator VT-i, 5.0L VU OHV 16-valve petrol V8, 195 kW, sedan RWD, 09/97–06/99; 120A option listed, check suitability.
• HSV Senator VT-i, 5.0L VU OHV 16-valve petrol V8, 195 kW, wagon RWD, 09/97–08/00; 120A option listed, check suitability.
• HSV XU8 VT-i, 5.0L VU OHV 16-valve petrol V8, 195 kW, sedan RWD, 01/99–06/99; Bosch-style 12V 120A unit listed.

Other listed VS applications

• Holden Special Vehicles Clubsport 5.0 VS-i V8, 1995–1997
• Holden Special Vehicles Grange 5.0 VS, 1996–1999
• Holden Special Vehicles Maloo 5.0 VS-i V8, 1995–2000
• Holden Special Vehicles Senator 5.0 VS-i V8, 1995–1997
• Holden Caprice 5.0 VS-i V8, 1995–1999
• Holden Commodore 5.0 VS-i V8, 1995–2000
• Holden Statesman 5.0 VS-i V8, 1995–1999

Specifications

• Voltage: 12V
• Amperage: 120A
• Mount leg ID: 32 mm
• Centre-to-centre mounts: 185 mm
• Top hole ID: M8
• Bottom hole ID: 10 mm, 3/8-inch UNC
• Shaft size: 17 mm
• Pulley type: 4PV
• Pulley grooves: 4
• Pulley diameter: 32 mm
• Regulator: internal
• Connection plug: EP76
• Terminals: B+, L, S
• Excitation: external
• Ground: negative
• Listed alternator weight: 7kg
• 3 year/120,000km warranty
